Sydney Wave Black 5.7×5.8m Double Carport | Carport Kit
The Sydney Double Carport gives you the freedom to park without extra posts. Ideal for turnaround areas or car charging stations, cantilever carports are a great way to protect your vehicle while taking up minimal space.
Available in either Apex or Wings configuration.
Brand: Palram | Canopia
Free Delivery: Sydney, Melbourne, Brisbane & Adelaide
Delivery Estimation: 3-10 working days for metro areas
| Description | DIMENSIONS | ASSEMBLY | WRRANTY | COMPARE CARPORTS | Reviews (0) |
Sydney Double Carport Apex – Black Structure / Corrugated Solar Grey Polycarbonate Panels Carport Kit:
The Sydney Apex Double Carport gives you the freedom to park two vehicles with plenty of room. Ideal for turnaround areas or car charging stations. The versatile dual carport kit boasts panels that transmit sunlight while still providing UV-protection and ample shade, allowing it to work as a double carport, patio cover, or outdoor covered lounge area.
Measuring almost 6 meters wide x 6 meters long, this dual car shelter is engineered to withstand volatile weather conditions. The ultra resilient polycarbonate carport includes a built-in gutter system, allowing water drainage & collection for a sustainable irrigation system. Protect your vehicle from snow, hail, wind, and UV-rays in an extra-large modern parking garage that is maintenance and rust free.
The Sydney Double Carport Apex provides your family with an Extra-large, elegant cover that is sturdy, maintenance and rust free for many years to come.
Versatile Apex Carport:
The Apex carport has four massive (86×170 mm) posts that connect in the centre to optimise space and have overhead clearance of 200-287.5 cm.

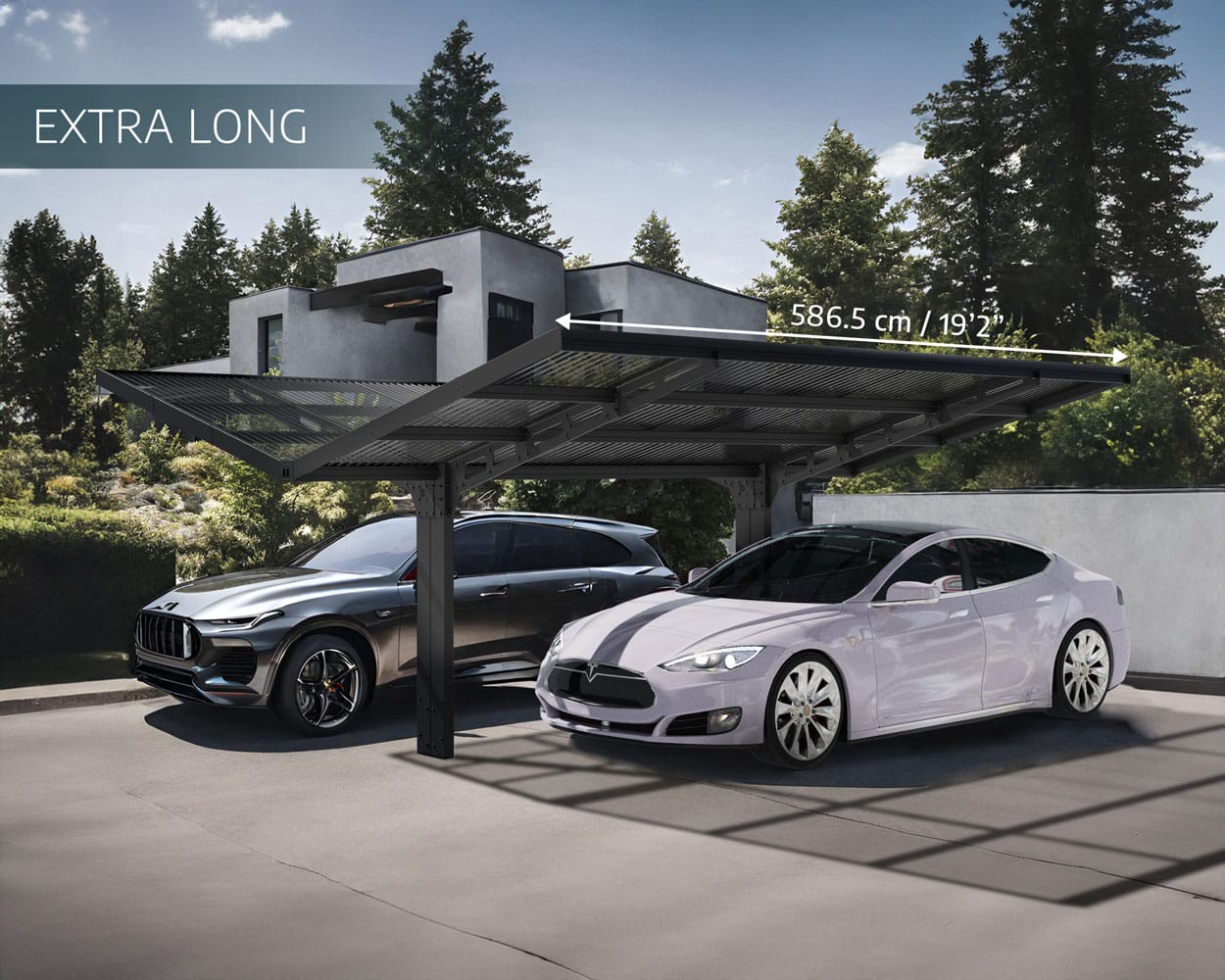

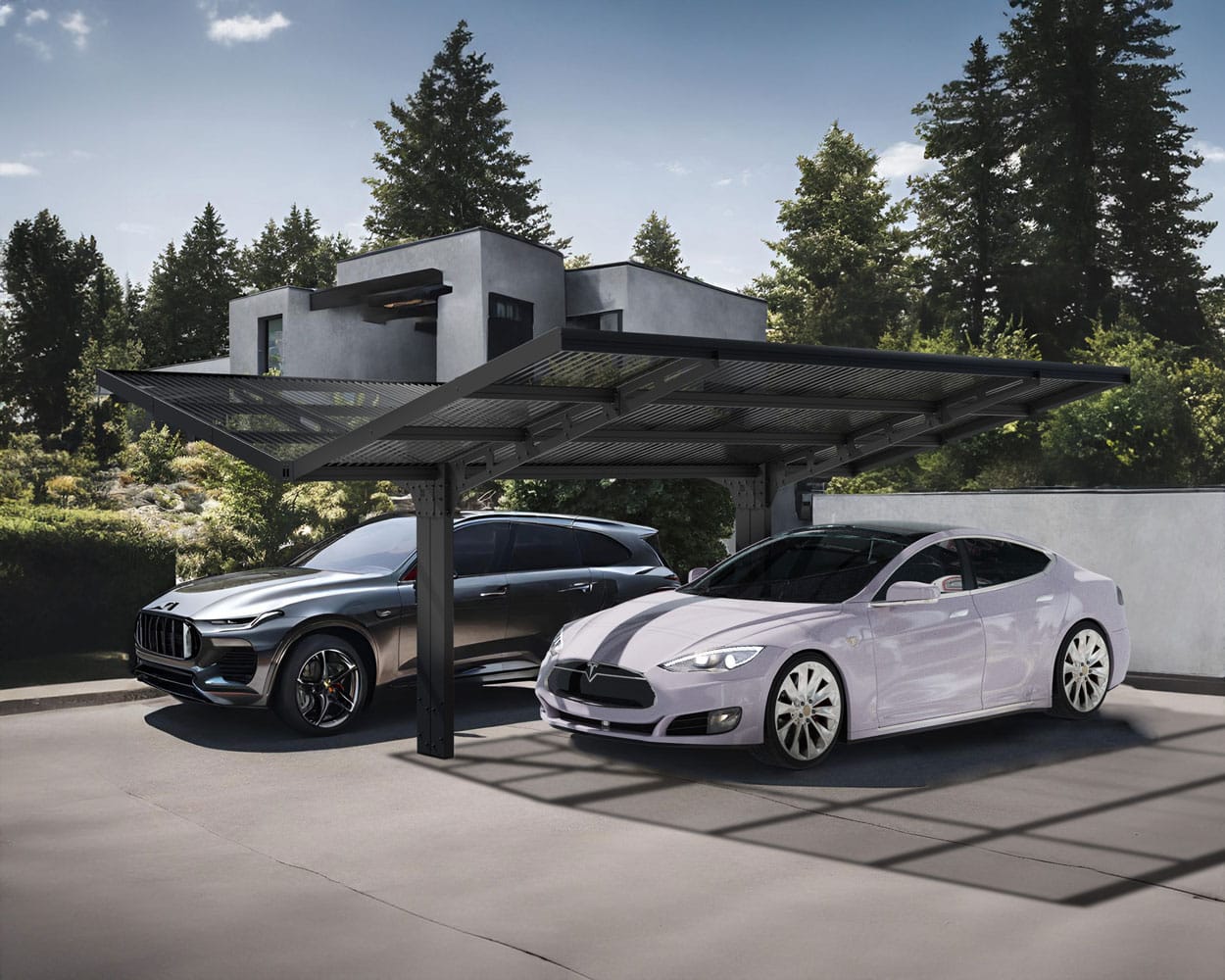

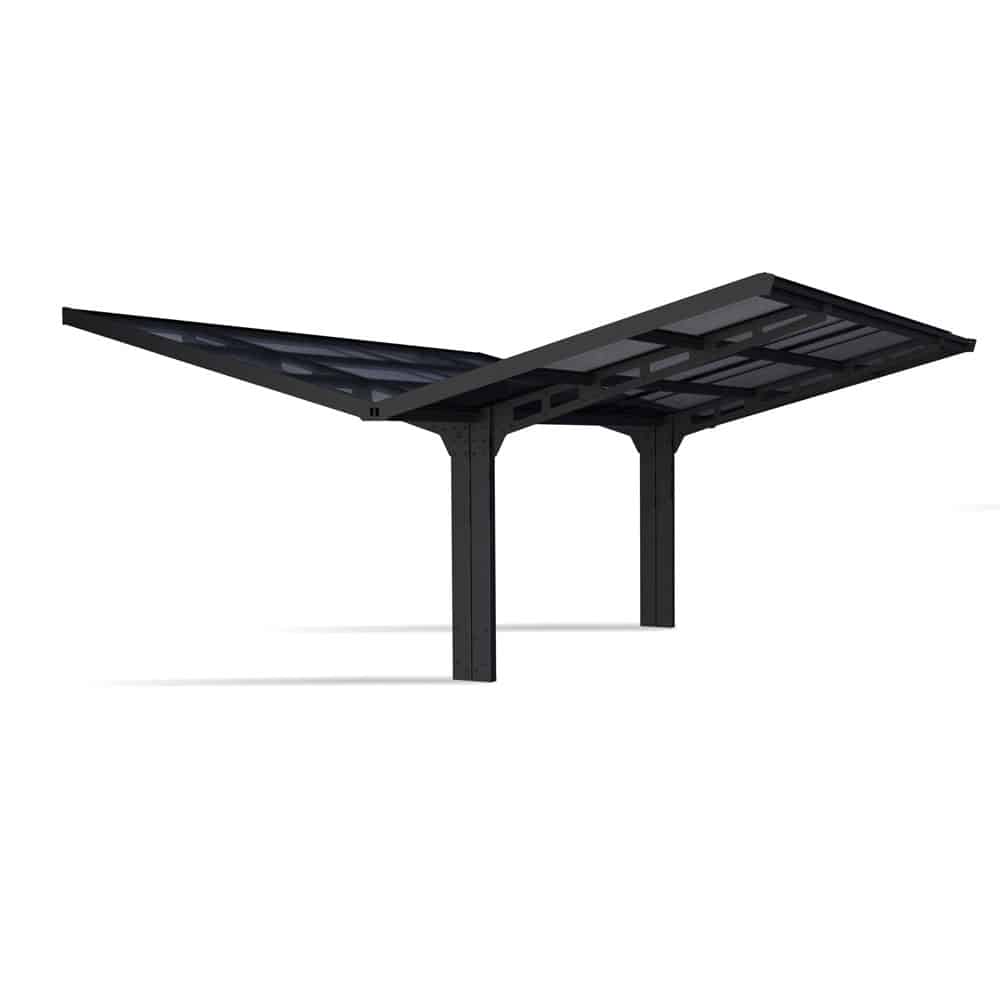

Versatile Wing Structure Carport:
The cantilever wings carport has four massive (8.6 x 17 cm) posts that connect in the centre to optimise space and have overhead clearance of 200-287.5 cm.

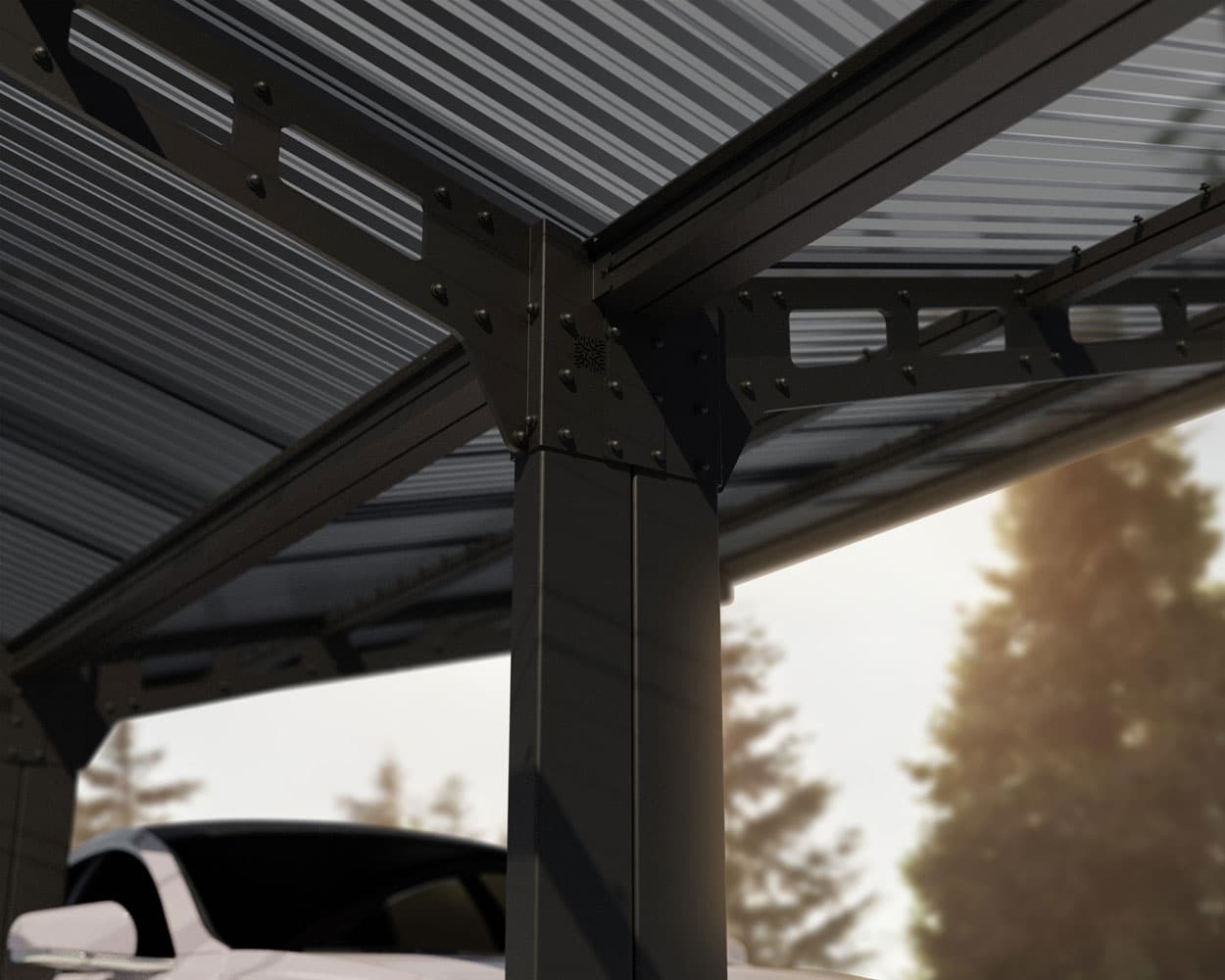

Durable Structure:
Aluminium frame is a strong, rust-resistant, black-coated metal and includes
integrated rain gutters to direct rainwater.

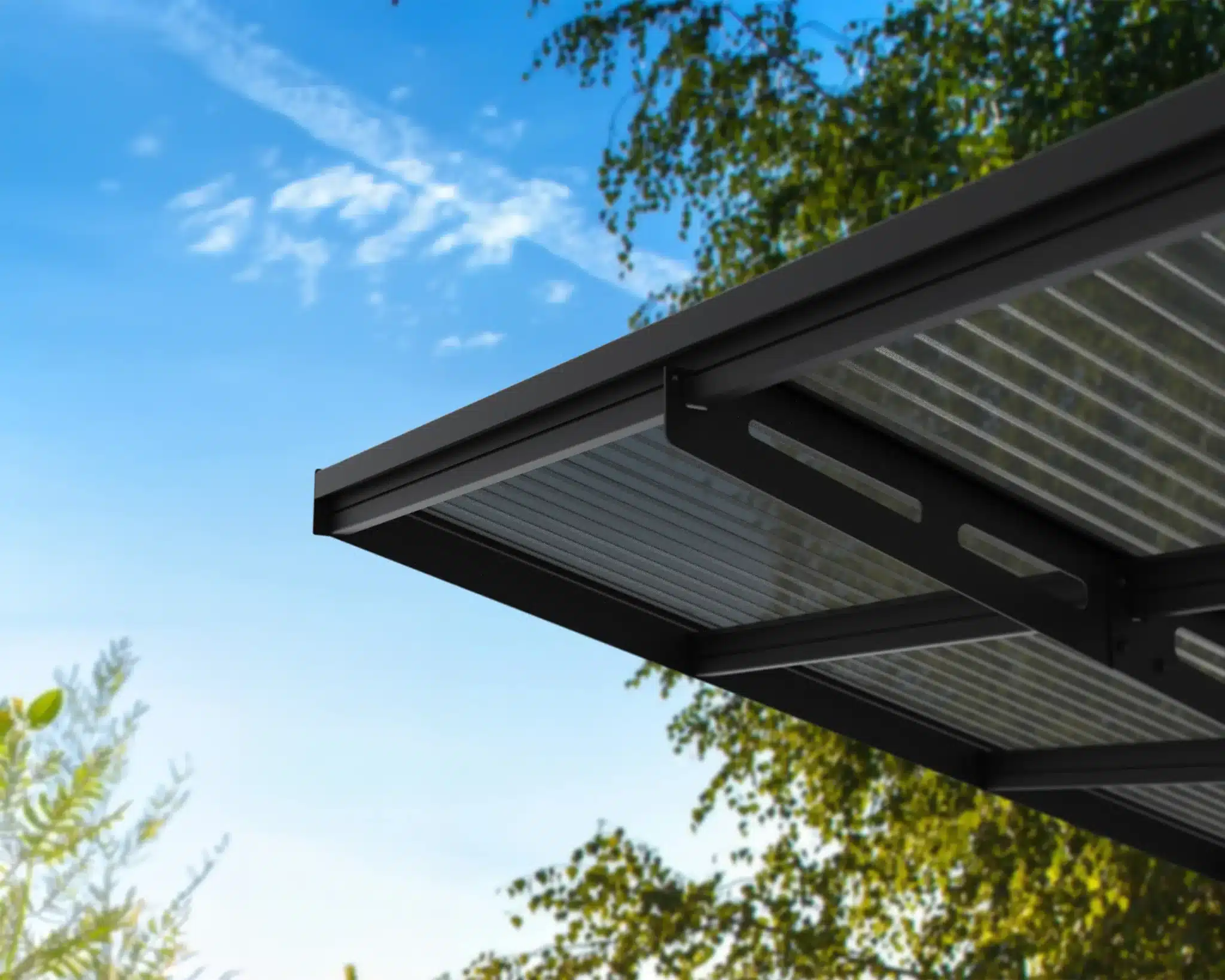

Sun Protection:
The corrugated solar grey polycarbonate panels provide 10% light transmission,
protecting your vehicles from strong sunlight exposure.

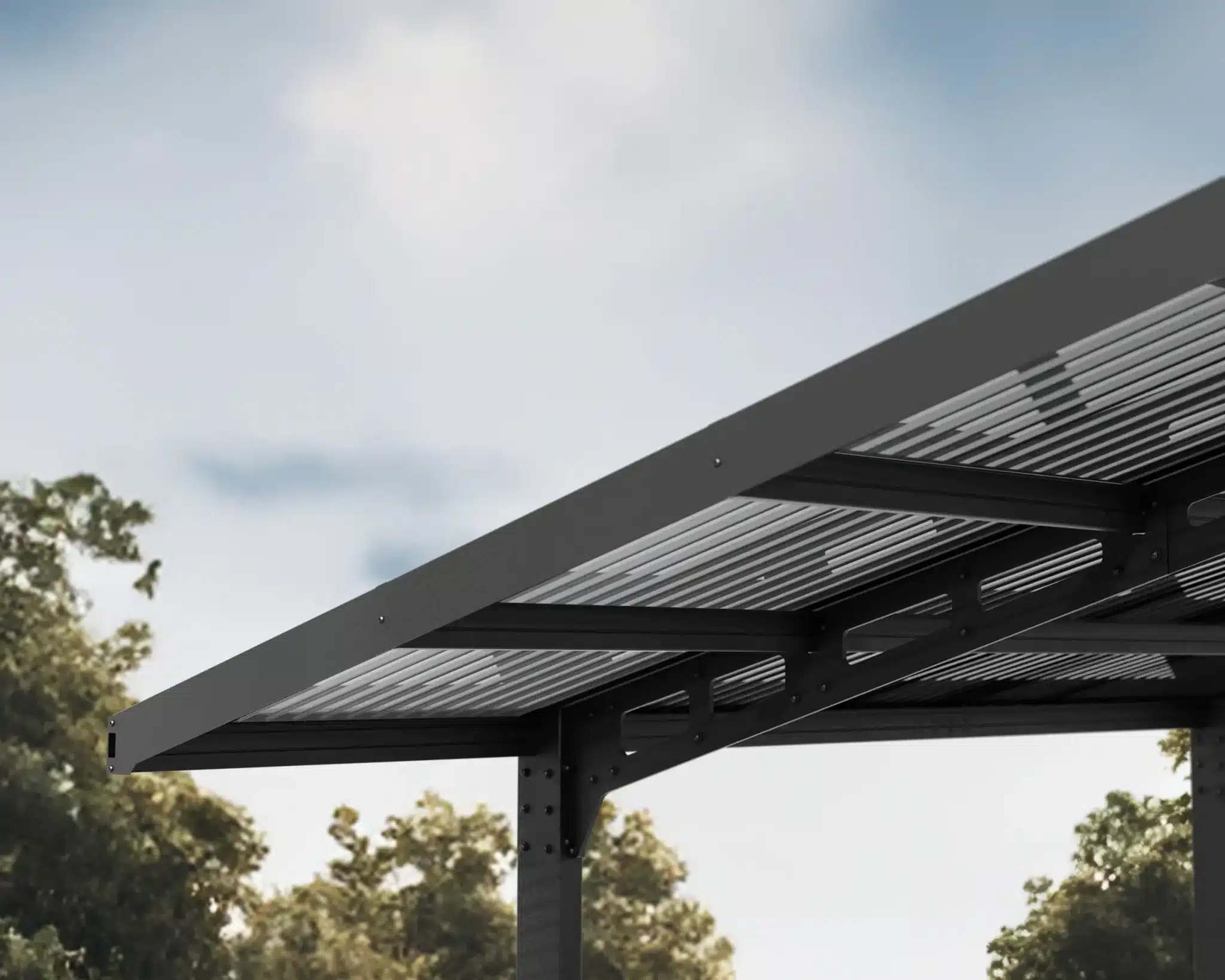

Resilient Panels:
Polycarbonate panels are 100% UV protected, virtually unbreakable and do not turn yellow or become brittle over time.
Heat Block Technology:
Protects your vehicle from harmful UV Rays, interior overheating, and reduces extreme heat EV battery degradation.
Year-Round Weather Resistance:
Wind, snow, and hail resistant.
Tested to withstand winds up to 120 km/h and 65km/m² of snow.
Self-Assembly:
Easy sliding panel system includes pre-drilled profiles and pre-cut panels making assembly as simple as possible. The carport must be fixed on a flat level surface site and concrete footing required.
Warranty:
10 Year Limited Warranty.
We recommend checking local buildings and zoning codes and guidelines.
Please ensure that any/all appropriate permits were acquired before installing the product.
Also ensure to install on a flat, leveled surface site for construction with solid base.
Polycarbonate panels
• Virtually unbreakable, 100% UV protected, solid solar grey Polycarbonate panels are high impact and shatter resistant
• Maintain their integrity, provide complete UV blockage, and are 100% UV protected; so they do not discolour, fracture or become brittle over time
• Ready to assemble pre-cut panels

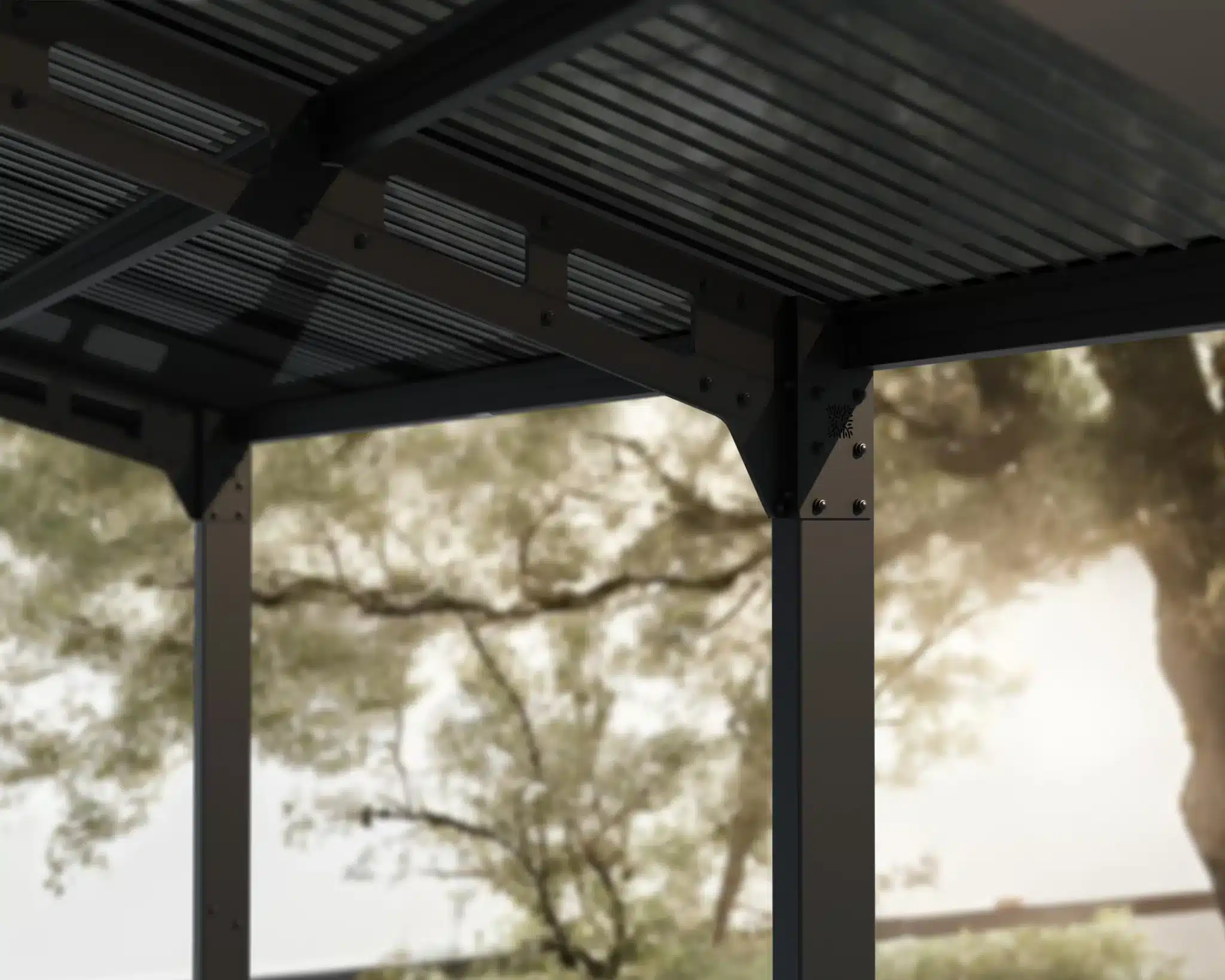

Heavy Duty Frame
• Robust, rust-resistant, powder-coated, ready to assemble pre-drilled profiles made of heavy duty Aluminium & laser cut galvanised steel connectors in anthracite finish
• Weather resistant – designed to withstand severe weather conditions
• Easy Access – 2 post structure

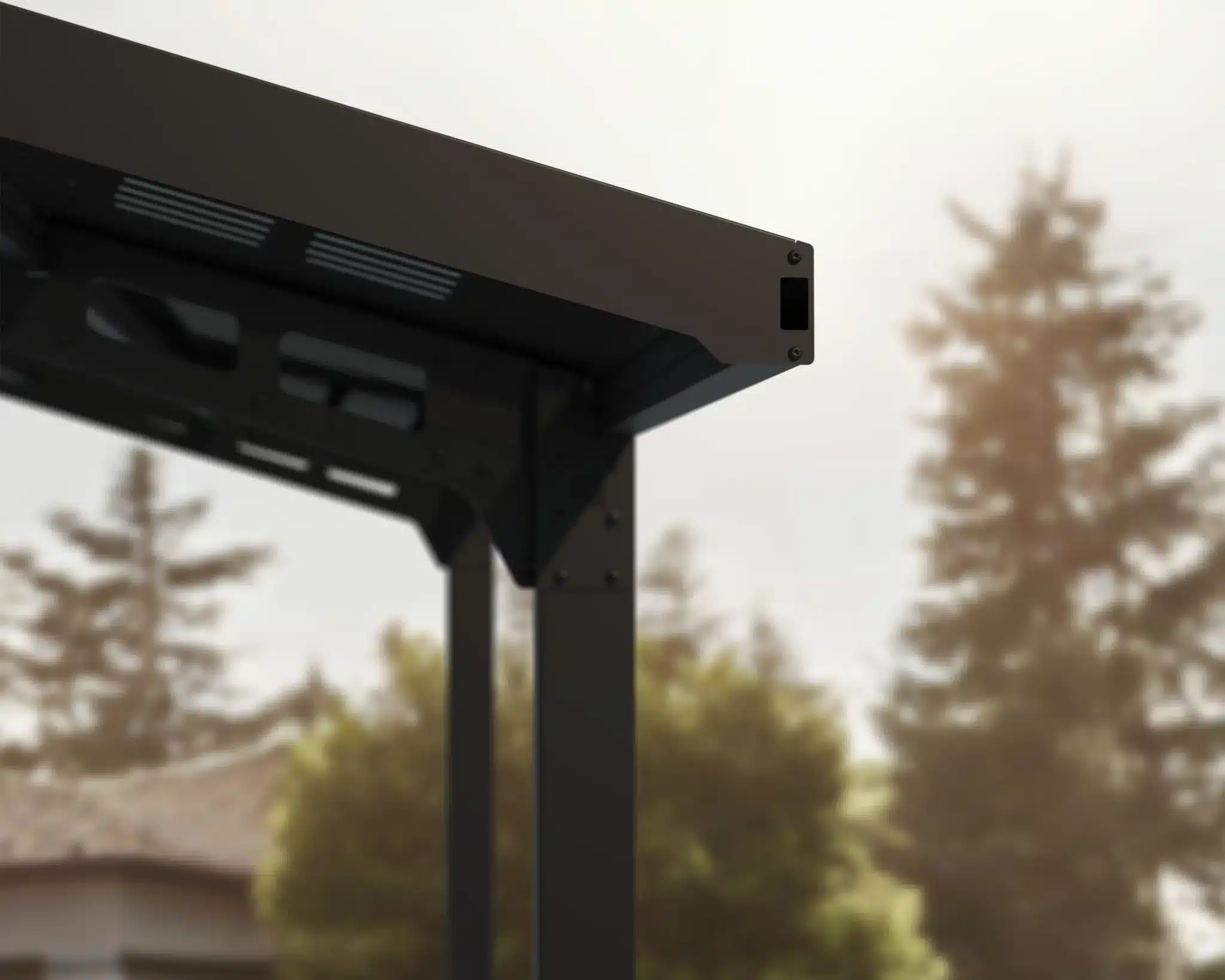

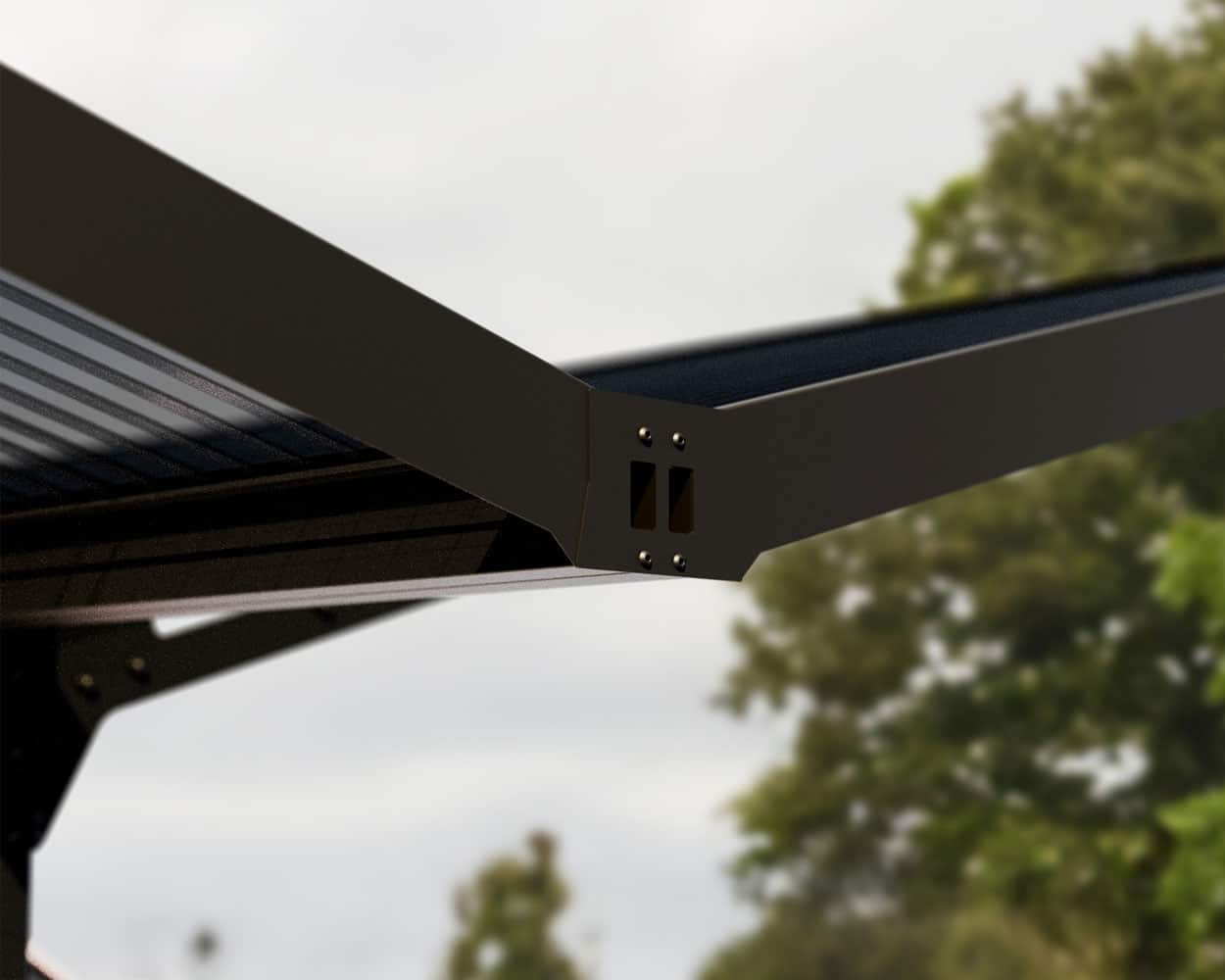

Built-in Gutters
• Built-in gutters channel rainwater
Easy Access
• Space-saving and easy-to-access carport, thanks to its 2-post structure

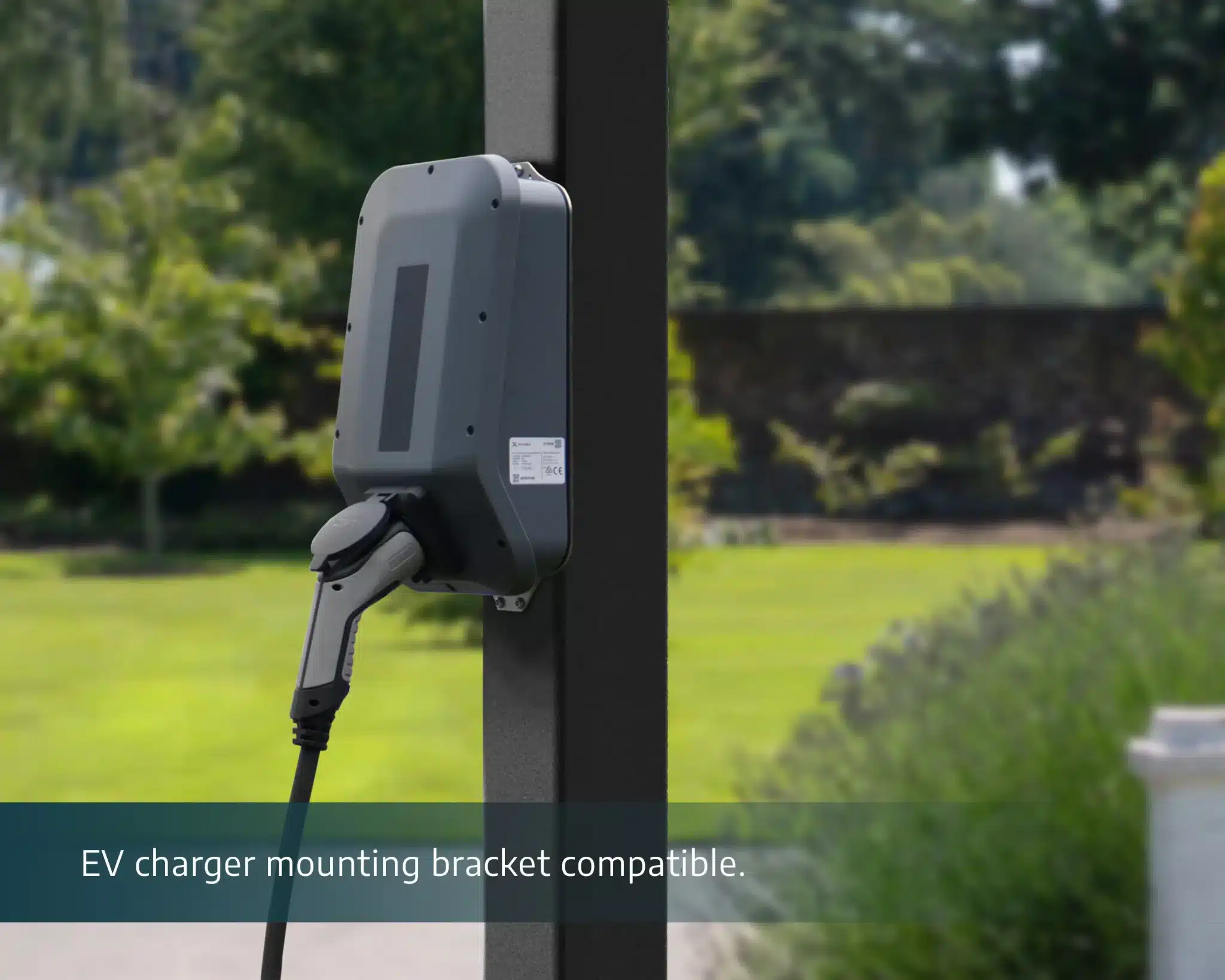

EV Charger
• For electric vehicles that will be parked under the carport, you can mount your EV charger on a carport post.
Specifications:
- WIND RESISTANCE – 120km/hr
- SNOW LOAD –65kg/m²
- LIGHT TRANSMISSION – 10%
- POLYCARBONATE PANEL – 0.7mm
Carport Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 572 | 18'8" | 538 | 17'7" | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 586.5 | 19'2" | 587 | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 288 | 9'5" | 200 | N/A | N/A | N/A | 211 | - | - | - |
- COVERING AREA = 33.5M2
- STORAGE AREA = 31.6M2
Packaging Dimensions & Weight
|
No of Boxes: 5 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 296 cm | 74 cm | 13 cm | 131.5 kg | 1.93 kg | 129.57 kg |
| Box 2 | 296 cm | 74 cm | 13 cm | 131.5 kg | 1.93 kg | 129.57 kg |
| Box 3 | 296 cm | 74 cm | 15 cm | 90.5 kg | 2.95 kg | 87.55 kg |
| Box 4 | 296 cm | 74 cm | 15 cm | 90.5 kg | 2.95 kg | 87.55 kg |
| Box 5 | 71 cm | 27.5 cm | 6.5 cm | 6.35 kg | 0.5 kg | 5.85 kg |
| Total Weight: | 450.35 kg | 10.26 kg | 440.09 kg |
Carport Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 572 | 18'8" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 586.5 | 19'2" | 587 | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 288 | 9'5" | 200 | N/A | N/A | N/A | 211 | - | - | - |
- COVERING AREA = 33.5M2
- STORAGE AREA = 31.6M2
Packaging Dimensions & Weight
|
No of Boxes: 5 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 296 cm | 74 cm | 13 cm | 131.5 kg | 1.93 kg | 129.57 kg |
| Box 2 | 296 cm | 74 cm | 13 cm | 131.5 kg | 1.93 kg | 129.57 kg |
| Box 3 | 296 cm | 74 cm | 15 cm | 90.5 kg | 2.95 kg | 87.55 kg |
| Box 4 | 296 cm | 74 cm | 15 cm | 90.5 kg | 2.95 kg | 87.55 kg |
| Box 5 | 71 cm | 27.5 cm | 6.5 cm | 6.35 kg | 0.5 kg | 5.85 kg |
| Total Weight: | 450.35 kg | 10.26 kg | 440.09 kg |
Click to view assembly PDF file:
Footings For Apex (Arch) Configuration
Footings For Wings Configuration
| Feature / Carport Type | Palram – Canopia Carport | Wooden Carport | Fabric Carport | Metal Carport |
| Frame Materials | Heavy duty, corrosion resistant Aluminium and galvanised steel | Wood | Fabric and Steel | Steel |
| Covering Type | Twin-Wall Polycarbonate roof panels | Usually sold separately | Polyester – Colour fading and rot over time / Polyethylene fabric – Hail resistant | Usually sold with the following cover options: PVC – Not hail resistant / Tin roof – May dent / Fiberglass – May cause health problems / Aluminium – Hail resistant |
| UV Resistance | All UV resistant – 100% UV protected non yellowing panels and powder coated Aluminium frame | Special expensive coating is needed annually | UV protected | Depend upon powder coating quality |
| Rot Resistance | Yes | None, requires periodic special coating / treatment | Depends on the covering type | Yes |
| Drainage | Integrated gutter and gutter heads | None (may be sold separately) | None | None (may be sold separately) |
| Weather Resistance | Extreme weather resistant – No wear and tear Withstands low temperatures up to -210°F / Withstands high temperatures up to 270°F | Needs periodic treatments | Weather resistant – Good corrosion resistance Does not withstand high temperatures, can become brittle over time | Needs periodic treatments |
| Maintenance | Maintenance free, rinse with water | Requires regular maintenance such as painting, rot treatments, sanding etc. | Requires regular maintenance such as replacing the covering, painting and anti-rust treatment, corrosion and rust appear over time | Requires regular maintenance such as painting and anti-rust treatment, corrosion and rust appear over time |
| Assembly | Quick and simple DIY setup – Assembled with common household tools | Usually requires professional setup | Quick and easy DIY setup | Usually requires professional setup |
| Assembly Kit | Fully equipped assembly kit provided – Anchoring and foot-pads Kit along with all screws and bolts | None (sold separately) | Usually a fully equipped assembly kit provided | Usually a fully equipped assembly kit provided |
| Eco Friendly | 100% recyclable and reusable | Uprooting forests | Does not decompose, becoming an environmental contamination | Harmful paints and materials pervade ground water |
| Warranty | 10 year | Varies | None – 1 Year | Varies |
| Packaging / Transport | Compact & efficient packaging, to be transported in your own pickup | Usually a heavy truck delivery | Compact packaging | Usually a heavy truck delivery |
*****
Some of our products may require building and planning permissions. Please check with your local council for potential building and planning requirements before proceeding with installation. If you require the engineering certificate and calculation for council application please click below.
