Feria 4 Pergola / Verandah / Patio-Cover
Enhance your outdoor experience year-round with an aesthetic, multi-purpose roofing solution
Brand: Palram | Canopia
Free Delivery: Sydney, Melbourne, Brisbane & Adelaide
Delivery Estimation: 3-10 working days for metro areas
Share This Product:
| Description | DIMENSIONS | ASSEMBLY | WARRANTY | COMPARE PATIO COVERS | Reviews (2) |
Feria 4 Pergola

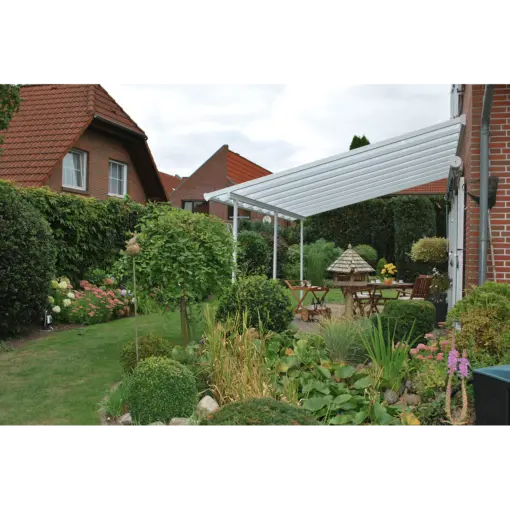

Enjoy your outdoors year-round with the Feria 4 Lean-To Pergola / Carport. The Feria is an aesthetic, multi-purpose and maintenance free roofing solution allowing for various outdoor uses such as a pergola, car port, patio cover etc. Protect your valuables from inclement weather and harmful UV rays with this high performance structure. It features flexible positioning poles which enable you to set your required height at the wall connection, the distance from the house and between the poles at the front. It was designed to be simply assembled by 2 people; no experience, no special skills, and no special tools are required. The Feria 4 Pergola provides your family with a stylishly crafted, rust-free and sturdy addition to your outside living space for many years to come.
Polycarbonate Panels
• Virtually unbreakable, translucent 8 mm multi-wall polycarbonate roof panels are high impact, shatter resistant and protect from inclement weather
• Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolor, fracture or become brittle over time
• Ready to assemble pre-cut panels
• Click N’ lock roof connector system allows a safe, quick and easy assembly; the glazing locks between the structure rods, preventing water seepage
Aluminum Structure
• Rust-resistant powder-coated frame made of heavy duty aluminum and laser cut galvanized steel connectors
• Ready to assemble pre-drilled profiles
Adjustable and flexible fixing method
• Requires a solid, level surface and solid wall support
• The Feria is a high performance structure, with flexible positioning poles enabling you to set your required height at the wall connection, the distance from the house and between the poles at the front
• Wall mounting plate is adjustable to meet your desired height between 260-305 cm (102.4 in. – 120 in.); allowing a flexible positioning of the roof slope (-13˚ – +17˚) enabling snow and rain to slide off (A)
• Adjustable poles allow for ideal positioning: left to right 0-54 cm (0 in. – 21.3 in.) and front to back 310-370 cm (122 in. – 145.6 in.) (B + C)
Anchoring
• Anchoring included – Secure the carport to the surface of your choosing to make the most of your sturdy structure, increase its stability and improve its weather resistance
• Sturdy 8×4 cm (3.15 in. x 1.57 in.) aluminum poles
Gutter & gutter heads
• Integrated gutter and adjustable gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system
Feria 4 Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 380 | 12'6" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 425.0 | 13'11" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 260-305 | 8'6"-10' | N/A | N/A | N/A | N/A | 210.0 | 82.7 | - | - |
- COVERING AREA = 16.2M2 / 173.8FT2
Packaging Dimensions & Weight
|
No of Boxes: 2 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 389 cm | 65 cm | 14.5 cm | 63.6 kg | 3.7 kg | 59.9 kg |
| Box 2 | 389 cm | 65 cm | 14.5 cm | 65.1 kg | 3.7 kg | 61.4 kg |
| Total Weight: | 128.7 kg | 7.4 kg | 121.3 kg |
Feria 4 Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 380 | 12'6" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 606.0 | 19'11" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 260-305 | 8'6"-10' | N/A | N/A | N/A | N/A | 210.0 | 82.7 | - | - |
- COVERING AREA = 23.0M2 / 247.9FT2
Packaging Dimensions & Weight
|
No of Boxes: 3 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 389 cm | 65 cm | 14.5 cm | 63.6 kg | 3.7 kg | 59.9 kg |
| Box 2 | 389 cm | 65 cm | 14.5 cm | 65.1 kg | 3.7 kg | 61.4 kg |
| Box 3 | 389 cm | 65 cm | 14.5 cm | 53 kg | 3.7 kg | 49.3 kg |
| Total Weight: | 181.7 kg | 11.1 kg | 170.6 kg |
Feria 4 Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 380 | 12'6" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 787.0 | 25'10" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 260-305 | 8'6"-10' | N/A | N/A | N/A | N/A | 210.0 | 82.7 | - | - |
- COVERING AREA = 29.9M2 / 321.9FT2
Packaging Dimensions & Weight
|
No of Boxes: 4 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 389 cm | 65 cm | 14.5 cm | 63.6 kg | 3.7 kg | 59.9 kg |
| Box 2 | 389 cm | 65 cm | 14.5 cm | 65.1 kg | 3.7 kg | 61.4 kg |
| Box 3 | 389 cm | 65 cm | 14.5 cm | 53 kg | 3.7 kg | 49.3 kg |
| Box 4 | 389 cm | 65 cm | 14.5 cm | 53 kg | 3.7 kg | 49.3 kg |
| Total Weight: | 234.7 kg | 14.8 kg | 219.9 kg |
Feria 4 Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 380 | 12'6" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 850.0 | 27'11" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 260-305 | 8'6"-10' | N/A | N/A | N/A | N/A | 210.0 | 82.7 | - | - |
- COVERING AREA = 32.3M2 / 347.7FT2
Packaging Dimensions & Weight
|
No of Boxes: 5 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 389 cm | 65 cm | 14.5 cm | 63.6 kg | 3.7 kg | 59.9 kg |
| Box 2 | 389 cm | 65 cm | 14.5 cm | 63.6 kg | 3.7 kg | 59.9 kg |
| Box 3 | 389 cm | 65 cm | 14.5 cm | 65.1 kg | 3.7 kg | 61.4 kg |
| Box 4 | 389 cm | 65 cm | 14.5 cm | 65.1 kg | 3.7 kg | 61.4 kg |
| Box 5 | 48 cm | 11.5 cm | 9.5 cm | 3.2 kg | 0.1 kg | 3.1 kg |
| Total Weight: | 260.6 kg | 14.9 kg | 245.7 kg |
Click to view certificates PDF file:
| Feature / Patio Cover Type | Palram – Canopia Patio Cover | Wooden Patio Cover | Metal Patio Cover |
| Frame Materials | Heavy duty, corrosion resistant Aluminium and galvanised steel | Wood | Steel |
| Covering Type | twin-wall or multi-wall Polycarbonate roof panels | Usually sold separately | Usually sold with the following cover options: PVC – Not hail resistant / Tin roof – May dent / Fiberglass – May cause health problems / Aluminum – Hail resistant |
| Light Transmission | Panels transmit diffused sunlight yet offer shade | No light transmission (only with fiberglass) | No light transmission (only with Polycarbonate) |
| UV Resistance | All UV resistant – 100% UV protected non yellowing panels and powder coated Aluminium frame | Special expensive coating is needed annually | Depend upon powder coating quality |
| Weather Resistance | Extreme weather resistant – No wear and tear Withstands low temperatures up to -210°F / Withstands high temperatures up to 270°F | Needs periodic treatments | Needs periodic treatments |
| Rot Resistance | Yes | None, requires periodic special coating / treatment | Yes |
| Drainage | Integrated gutter and adjustable gutter heads | None (may be sold separately) | None (may be sold separately) |
| Maintenance | Maintenance free, rinse with water | Requires regular maintenance such as painting, rot treatments, sanding etc. | Requires regular maintenance such as painting and anti-rust treatment, corrosion and rust appear over time |
| Assembly | Quick and simple DIY setup – Assembled with common household tools | Usually requires professional setup | Usually requires professional setup |
| Assembly Kit | Fully equipped assembly kit provided – Anchoring and foot-pads Kit along with all screws and bolts | None (sold separately) | Usually a fully equipped assembly kit is provided |
| Eco Friendly | 100% recyclable and reusable | Uprooting forests | Harmful paints and materials pervade ground water |
| Warranty | 10 year | Varies | Varies |
| Packaging / Transport | Compact & efficient packaging, to be transported in your own pickup | Usually a heavy truck delivery | Usually a heavy truck delivery |
2 reviews for Feria 4 Pergola / Verandah / Patio-Cover
Customer Images
*****
Some of our products may require building and planning permissions. Please check with your local council for potential building and planning requirements before proceeding with installation. If you require the engineering certificate and calculation for council application please click below.
